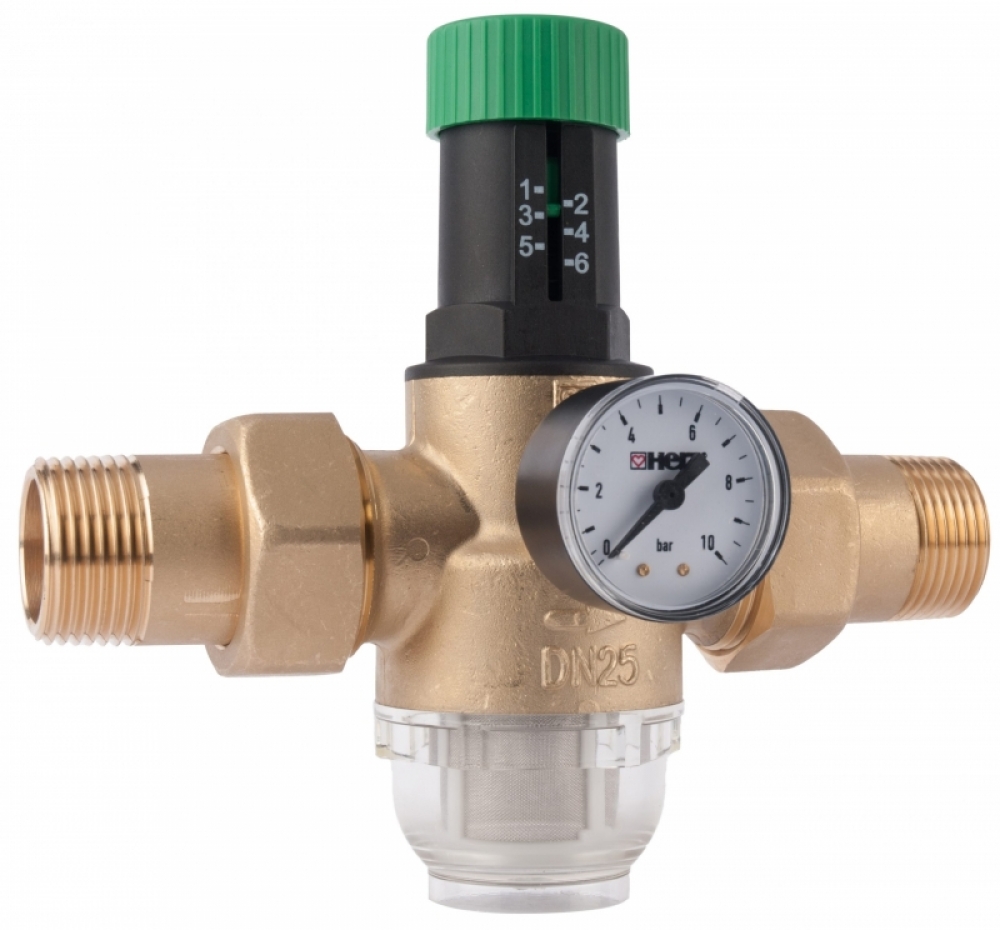

COLD WATER PRESSURE REDUCERS (2682)

DN15÷DN25 forged brass body, in yellow (uncoated) brass version, brass according to EN 12165.
DN32÷DN50 cast brass body, in yellow (uncoated) version, brass in accordance with EN 19822.
Indicator scale and adjustment wheel in green and black plastic PA6.6.
EPDM rubber diaphragm; special steel spring; stainless steel spring guide.
Connector with male thread and Dutch plug connectors according to ISO 7 and ISO 228.
Transparent plastic container PA12 (GRILAMID TR90).
Stainless steel filter screen and hostaform frame with 0,3 mm mesh.
Connections for pressure gauge 1/4 female thread, according to ISO 228 + pressure gauge 0÷10 bar.
Maximum operating temperature: 40 ºC
Maximum working pressure: 16 bar
Pressure setting range: 1,5÷6 bar
Factory pressure setting: 3 bar
