Temperature controllers with thermal disinfection, for domestic hot water recirculation
4011
4011
TEMPERATURE CONTROLLERS WITH THERMAL DISINFECTION, FOR DOMESTIC HOT WATER RECIRCULATION (4011)

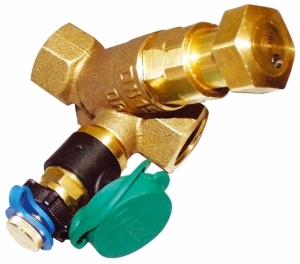

Temperature controller with thermal disinfection, for domestic hot water recirculation
Thermostatic control valve used in pumped hot water recirculation systems.
It is a proportional controller with independent operation without auxiliary power.
Model with inclined seat, made of disinfectant-resistant brass, in yellow (uncoated) version.
Stainless steel springs and guiding elements; rubber seals (EPDM).
Connector with internal thread type Rp in accordance with ISO 7.
The model has two thermostats and operates as follows:
When the control temperature is reached, the first thermostat closes the valve.
The first thermostat opens the first thermostat. When the temperature reaches 70 ºC,
the second thermostat opens the tap (against Legionella bacteria growth).
The threaded sockets are made with a cone for connecting a 15 mm copper pipe.
Together with compression connectors 1 6292 01.
Maximum operating temperature: 80 ºC
Maximum working pressure: 10 bar
Fixed thermostat temperatures: according to table
Temperature controller with thermal disinfection, for domestic hot water recirculation
Thermostatic control valve used in pumped hot water recirculation systems.
It is a proportional controller with independent operation without auxiliary power.
Model with inclined seat, made of disinfectant-resistant brass, in yellow (uncoated) version.
Stainless steel springs and guiding elements; rubber seals (EPDM).
Connector with internal thread type Rp in accordance with ISO 7.
The model has two thermostats and operates as follows:
When the control temperature is reached, the first thermostat closes the valve.
The first thermostat opens the first thermostat. When the temperature reaches 70 ºC,
the second thermostat opens the tap (against Legionella bacteria growth).
The threaded sockets are made with a cone for connecting a 15 mm copper pipe.
Together with compression connectors 1 6292 01.
Maximum operating temperature: 80 ºC
Maximum working pressure: 10 bar
Fixed thermostat temperatures: according to table
Name |
Kws [m3/h] |
Temperature [C] |
PN[bar] |
Link |
Size |
Article number |
Package |
Temperature controller with thermal disinfection for domestic hot water recirculation |
0,45 |
52/70 |
10 |
FI-FI 1/2 |
DN 15 |
2 4011 01 |
20 |
Temperature controller with thermal disinfection for domestic hot water recirculation |
0,45 |
52/70 |
10 |
FI-FI 3/4 |
DN 20 |
2 4011 02 |
20 |
Temperature controller with thermal disinfection for domestic hot water recirculation |
0,45 |
55/70 |
10 |
FI-FI 1/2 |
DN 15 |
2 4011 11 |
20 |
Temperature controller with thermal disinfection for domestic hot water recirculation |
0,45 |
55/70 |
10 |
FI-FI 3/4 |
DN 20 |
2 4011 12 |
20 |
Temperature controller with thermal disinfection for domestic hot water recirculation |
0,45 |
58/70 |
10 |
FI-FI 1/2 |
DN 15 |
2 4011 017 |
20 |
Temperature controller with thermal disinfection for domestic hot water recirculation |
0,45 |
58/70 |
10 |
FI-FI 3/4 |
DN 120 |
2 4011 18 |
20 |
