SAFETY VALVES WITH FIXED SETTING FOR DRINKING WATER (0132)

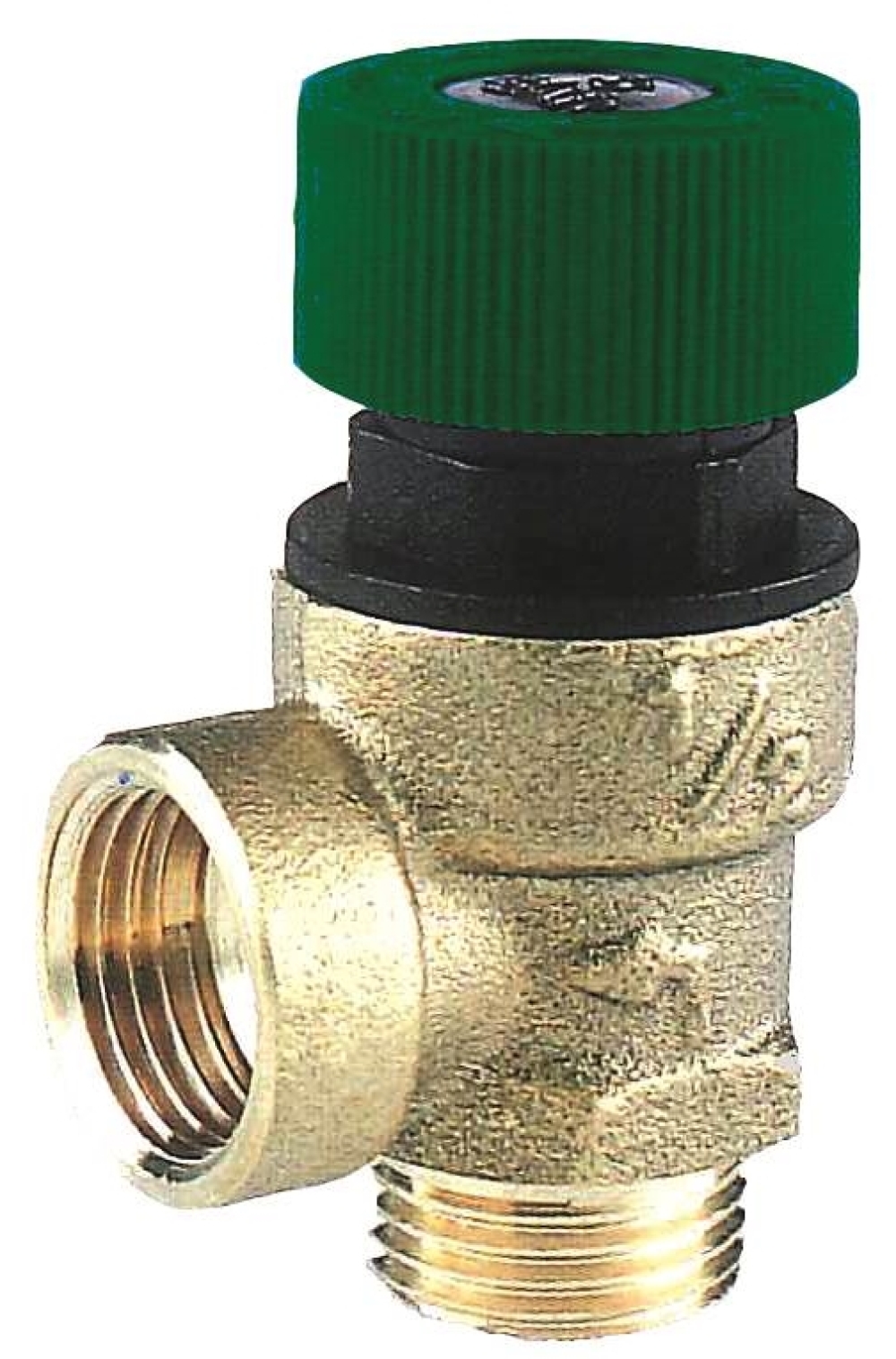

Safety valve with presetting for drinking water installations
Forged brass body, in yellow (uncoated) version.
Special steel spring; green plastic cover.
Connection with external and internal thread G, according to ISO 228.
Maximum operating temperature: 110 ºC (without steam).
Minimum operating temperature: 0 ºC (water 0,5 ºC)
Discharge pressure: 6 bar
Safety valve with presetting for drinking water installations
Forged brass body, in yellow (uncoated) version.
Special steel spring; green plastic cover.
Connection with external and internal thread G, according to ISO 228.
Maximum operating temperature: 110 ºC (without steam).
Minimum operating temperature: 0 ºC (water 0,5 ºC)
Discharge pressure: 6 bar
Name |
PN[bar] |
Link |
Size |
Article number |
Package |
Safety valve with fixed setting for drinking water |
6 |
FI-FI 1/2-1/2 |
DN 15 |
I 0132 14 |
1 |
