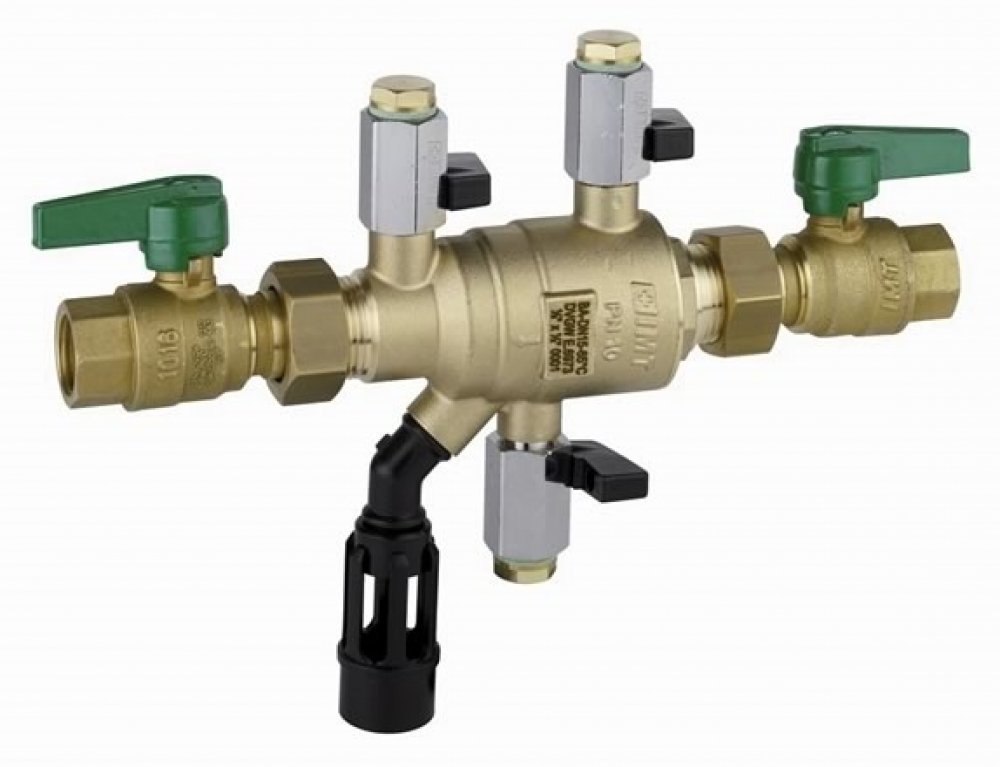

BACKFLOW PREVENTER (0303)

Backflow preventer type BA, in accordance with DIN EN 1717
For use in water supply to prevent contaminated water from entering buildings.
Housing of forged brass, in yellow (nickel-plated) version, brass in accordance with EN 12420.
Chrome-plated brass taps for testing; ball stop valves for interventions.
Type G female threaded connection in accordance with ISO 228.
Rubber seals (EPDM).
All elements in contact with water shall be made of physiologically safe materials.
Maximum operating temperature: 65 ºC
Maximum operating pressure: 10 bar
