LEGIOFIX PROTECTIVE MICROMODULE (4011)

LEGIOFIX Protective Micromodule
An independent micromodule that operates without auxiliary power supply.
Facilitates the washing of air-conditioning systems to prevent the growth of bacteria.
Legionella/circulation according to ÖNORM B 5019, up to 6 m from each sampling point.
Normal operation: closed bypass, flow passes through a pre-regulated mixing valve.
Mixing temperature at sampling 55 ºC.
Flushing to prevent the growth of Legionella bacteria:
Open bypass; flow at disinfection temperature passes through micromodule.
After the rinsing process is complete, it automatically returns to normal operation.
All components in contact with water are made of disinfectant-resistant brass.

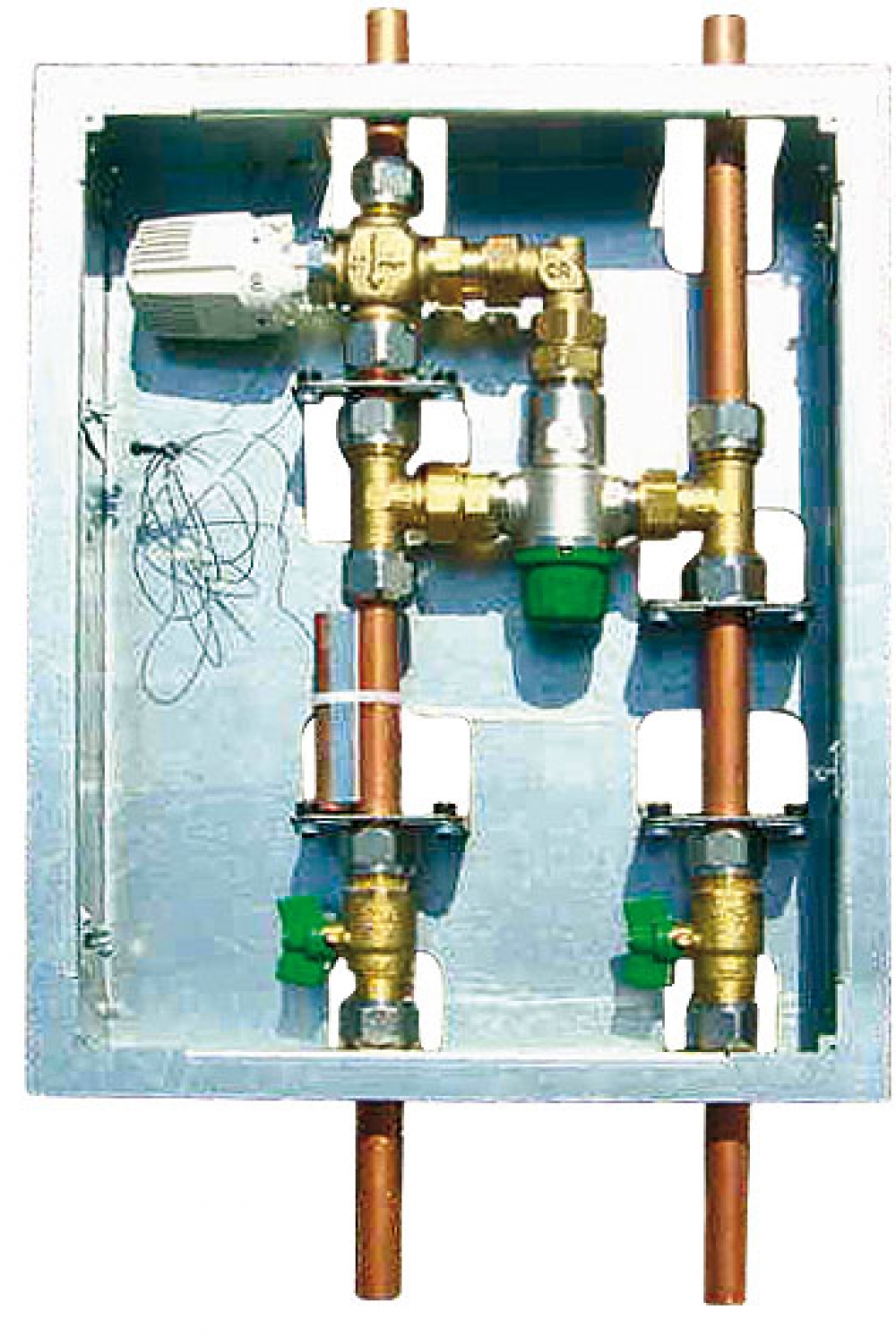

Supplied in a 430x340x70 (+35) mm galvanised sheet metal box for underground installation.
The box includes a white plastic cover.
Maximum operating temperature: 90 ºC (without steam)
Minimum operating temperature: 2 ºC
Maximum operating pressure: 10 bar
