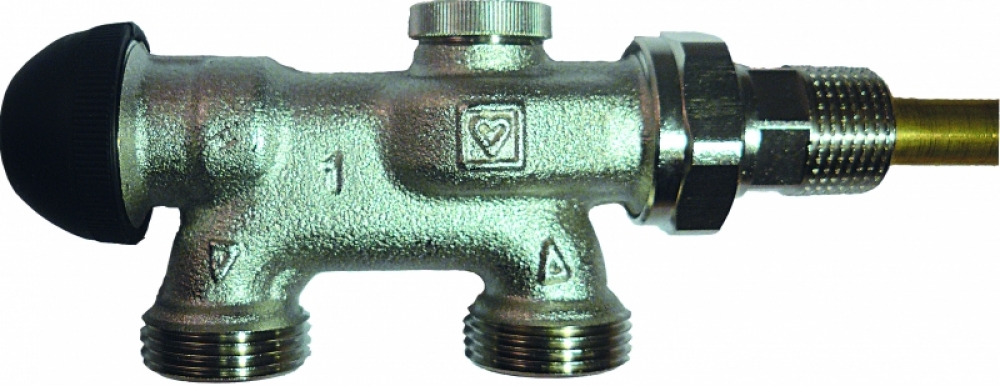

THERMOSTATIC VALVES VTA-50 (7767)
Thermostatic 4-way valve with thermostatic insert without presetting on the return and regulating valve, with shut-off on the return. The radiator can be disassembled, and the thermostatic insert replaced with Changefix tool, with installation under pressure. The valve is used in single-pipe installations. The size of the immersion pipe is l=290 mm, Φ=11 mm. The connection to the radiator is made with a semi-open plug connection with a socket and a conical seal Rp 1/2. The connection to the pipe is made with an external thread with a conical seal G 3/4, for Euro-con. Distance between plugs is 50 mm. Pipe connections must be ordered separately.
Thermostatic 4-way valve with thermostatic insert without presetting on the return and regulating valve, with shut-off on the return. The radiator can be disassembled, and the thermostatic insert replaced with Changefix tool, with installation under pressure. The valve is used in single-pipe installations. The size of the immersion pipe is l=290 mm, Φ=11 mm. The connection to the radiator is made with a semi-open plug connection with a socket and a conical seal Rp 1/2. The connection to the pipe is made with an external thread with a conical seal G 3/4, for Euro-con. Distance between plugs is 50 mm. Pipe connections must be ordered separately.
Name |
Size |
Article |
Package |
Thermostatic valve VTA-50 |
DN 15 290/11 |
1 7767 26 |
1 |
