Valves for 2000 level downstream connections
7176
7176

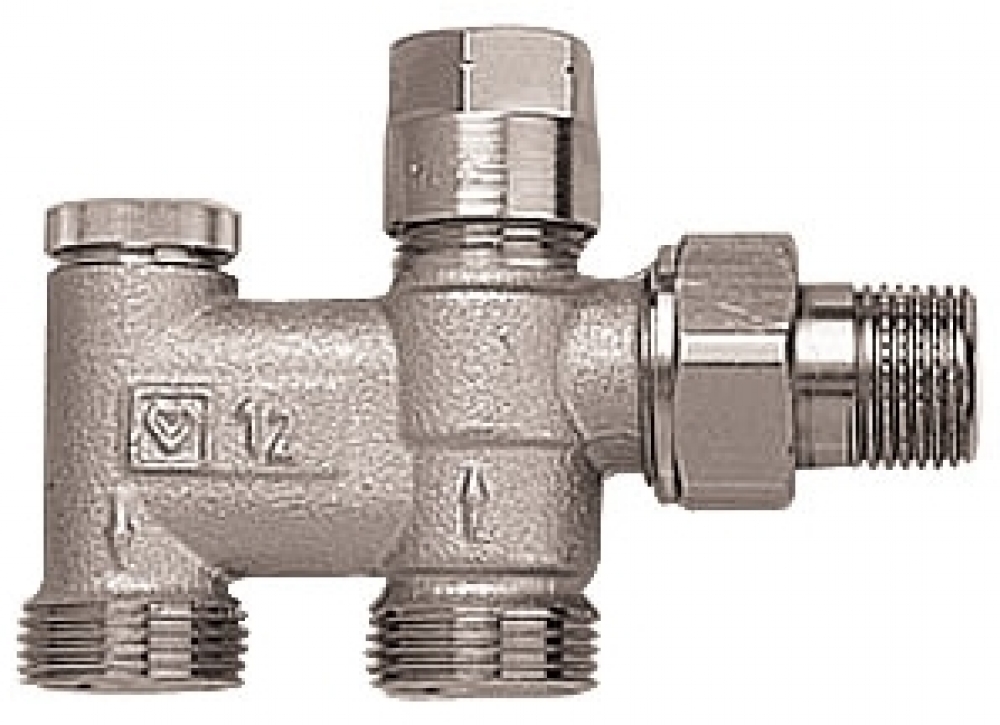

BOTTOM CONNECTION VALVES 2000 STRAIGHT (7176)
Pipe with straight bottom connection with regulating and shut-off valve.
The valve is used in double-pipe installations.
Connection to the radiator is made with a half-empty connection with a nipple and conical seal.
With built-in compression adapter 1/2 x 15 (article 1 6292 01).
Connection to the pipe is made with an external thread with a conical seal G 3/4, for Euro-con.
Distance between plugs: 40 mm.
Pipe connections must be ordered separately.
Pipe with straight bottom connection with regulating and shut-off valve.
The valve is used in double-pipe installations.
Connection to the radiator is made with a half-empty connection with a nipple and conical seal.
With built-in compression adapter 1/2 x 15 (article 1 6292 01).
Connection to the pipe is made with an external thread with a conical seal G 3/4, for Euro-con.
Distance between plugs: 40 mm.
Pipe connections must be ordered separately.
Name |
Size |
Article |
Package |
Bottom Connection Pipe 2000 |
1/2 x M 22 x 1.5 |
1 7176 01 |
1 |
