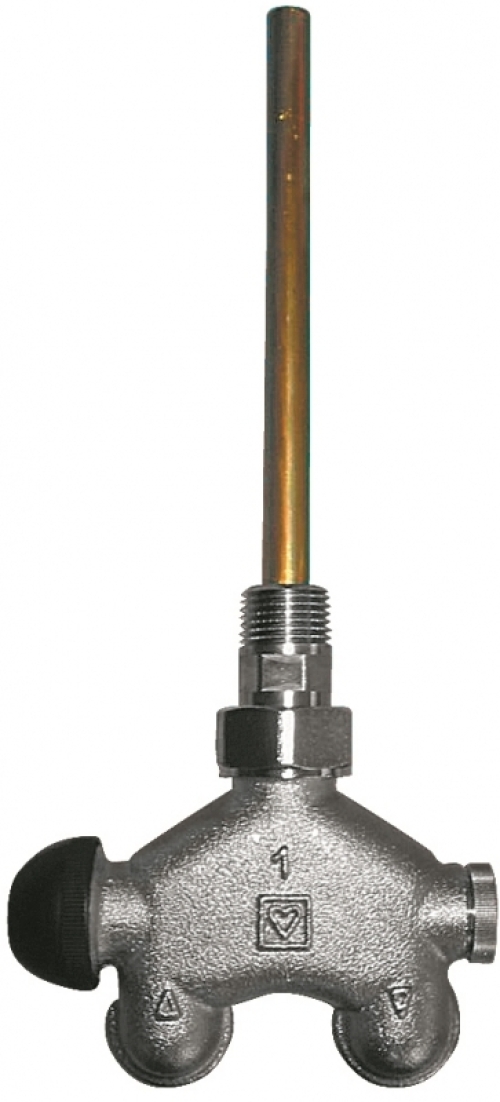

THERMOSTATIC VALVES VUA-50 ANGLED (7784)
Angled 4-way thermostatic valve with thermostatic insert without presetting on the return and regulating valve, with shut-off. The radiator can be disassembled, and the thermostatic insert replaced with Changefix tool, with installation under pressure. The valve is used in single-pipe installations. The size of the immersion pipe is l=150 mm, Φ=11 mm. The connection to the radiator is made with a semi-hollow plug connection with a nipple and a conical seal Rp 1/2. The connection to the pipe is made with an external thread with a conical seal G 3/4, for Euro-con. Distance between plugs is 50 mm. Pipe connections must be ordered separately.
Angled 4-way thermostatic valve with thermostatic insert without presetting on the return and regulating valve, with shut-off. The radiator can be disassembled, and the thermostatic insert replaced with Changefix tool, with installation under pressure. The valve is used in single-pipe installations. The size of the immersion pipe is l=150 mm, Φ=11 mm. The connection to the radiator is made with a semi-hollow plug connection with a nipple and a conical seal Rp 1/2. The connection to the pipe is made with an external thread with a conical seal G 3/4, for Euro-con. Distance between plugs is 50 mm. Pipe connections must be ordered separately.
Name |
Size |
Article |
Package |
Thermostatic valve VUA-50 angled |
DN 15 150/11 |
1 7784 62 |
10 |
