Double Actuated Ball Valves
2502
2502
BALL VALVES WITH DOUBLE HANDLE (2502)

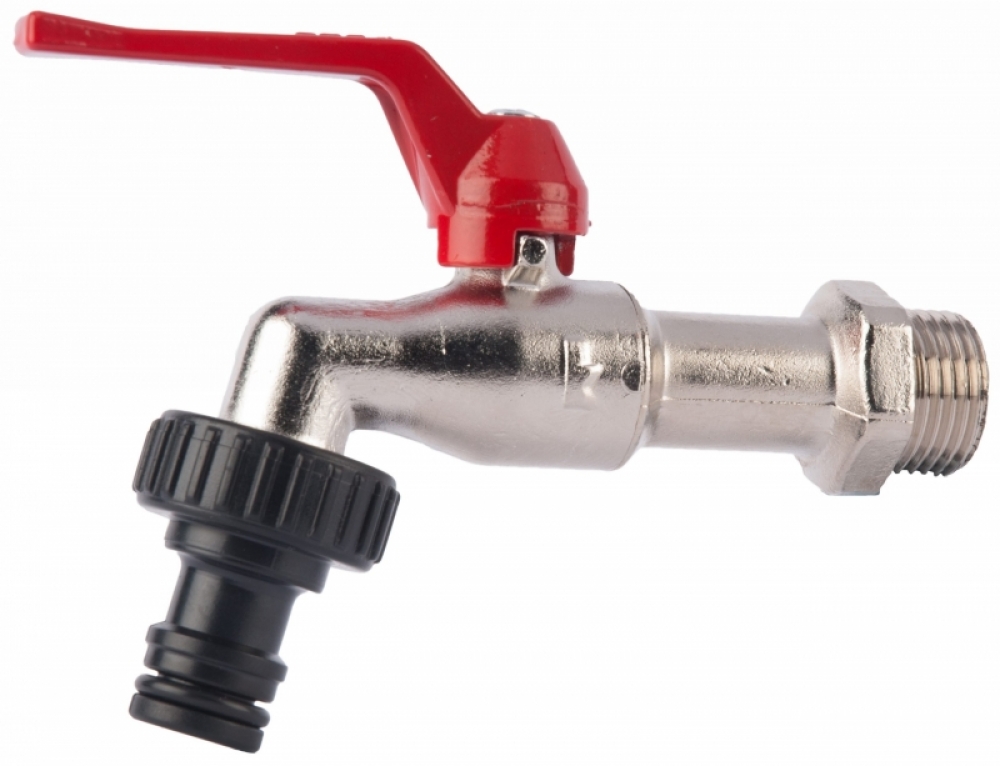

Ball valve with double-action lever With plastic portfortun connection for quick coupling. Lever drive, made of silumin, painted in red. Forged brass body, nickel-plated, with external thread according to ISO 228 standard. Forged brass ball, chrome-plated and with a full bore. Machined brass stem. The ball is sealed with PTFE seals, while the stem is sealed with rubber seals (NBR). Maximum working temperature: 110 ºC Minimum working temperature: -30 ºC (water 0.5 ºC) Maximum working pressure: 16 bars
Ball valve with double-action lever With plastic portfortun connection for quick coupling. Lever drive, made of silumin, painted in red. Forged brass body, nickel-plated, with external thread according to ISO 228 standard. Forged brass ball, chrome-plated and with a full bore. Machined brass stem. The ball is sealed with PTFE seals, while the stem is sealed with rubber seals (NBR). Maximum working temperature: 110 ºC Minimum working temperature: -30 ºC (water 0.5 ºC) Maximum working pressure: 16 bars
Name |
PN[bar] |
Connection |
Size |
Article |
Packaging |
Ball valve with double handle |
16 |
FE 1/2 |
DN 10 |
1 2502 01 |
25 |
Ball valve with double handle |
16 |
FE 3/4 |
DN 15 |
1 2502 02 |
25 |
