Ball Drain Valves with Portfurtun Connection
2512
2512
BALL RELEASE VALVES WITH PORTFORTUN CONNECTION (2512)

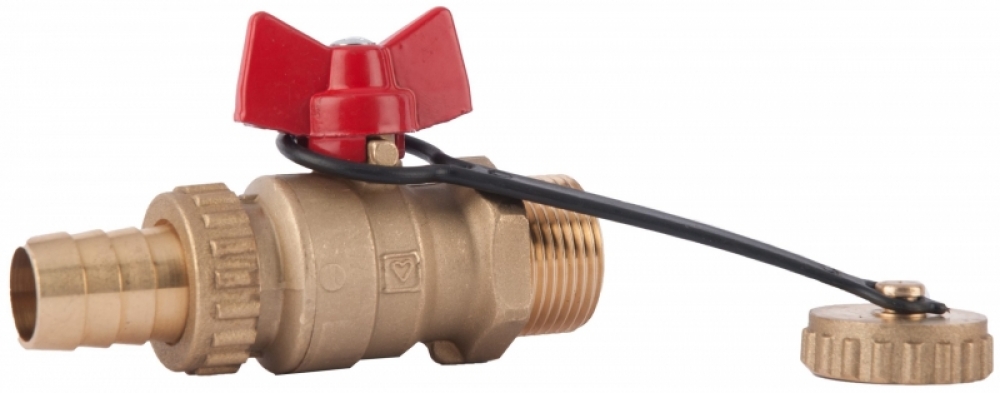

Ball release valve with ball, portfortun connection, and brass cover with rubber seal. Silicon metal drive, painted in red color. Forged brass body, in yellow (nickel-plated) version, with external thread according to ISO 228 standard. Forged brass ball, chrome-plated and with a full bore. Machined brass stem. Ball and stem are sealed with PTFE seals. Maximum working temperature: 110 ºC. Minimum working temperature: -30 ºC (water 0.5 ºC). Maximum working pressure: 12.50 bars.
Ball release valve with ball, portfortun connection, and brass cover with rubber seal. Silicon metal drive, painted in red color. Forged brass body, in yellow (nickel-plated) version, with external thread according to ISO 228 standard. Forged brass ball, chrome-plated and with a full bore. Machined brass stem. Ball and stem are sealed with PTFE seals. Maximum working temperature: 110 ºC. Minimum working temperature: -30 ºC (water 0.5 ºC). Maximum working pressure: 12.50 bars.
Name |
PN[bar] |
Connection |
Size |
Article |
Packaging |
Ball release valve with ball and portfortun connection |
12.50 |
FE 1/2 |
DN 15 |
1 2512 01 |
50 |
Ball release valve with ball and portfortun connection |
12.50 |
FE 3/4 |
DN 20 |
1 2512 02 |
20 |
