Safety valves with directional control damper and fixed adjustment
UH1300
UH1300

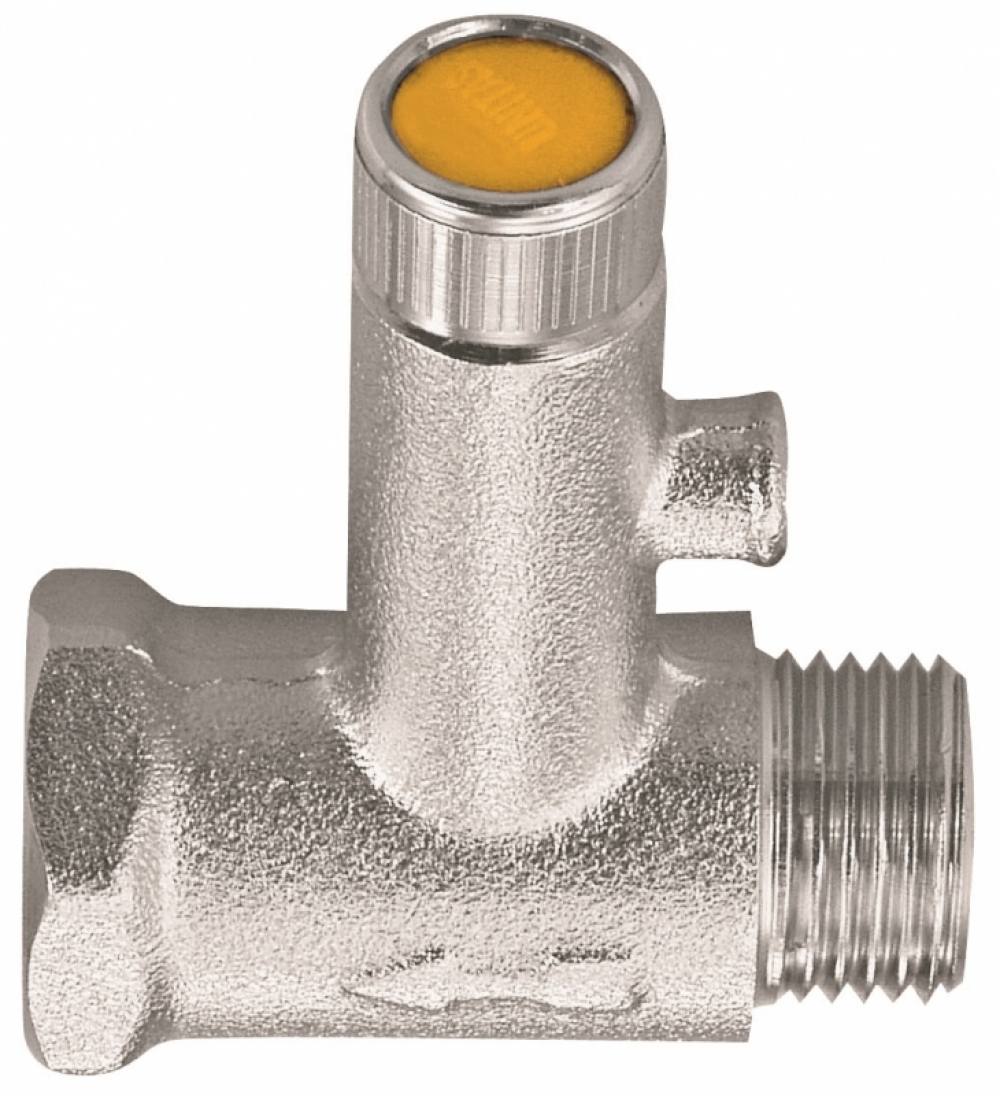

SAFETY VALVES WITH DIRECTIONAL CONTROL DAMPER AND FIXED SETTING (UH1300)
Included safety valve with preset setting and directional damper
Forged brass body, nickel-plated, brass according to EN 12420 standard.
Spring made of stainless steel; brass spindle; sealing ring type WMQ501.
External-internal threaded connection type G, according to ISO 228 standard.
Maximum working temperature: 110 ºC (without steam)
Minimum working temperature: 0 ºC (water 0.5 ºC)
Discharge pressure: 8 bar (red cap)
Included safety valve with preset setting and directional damper
Forged brass body, nickel-plated, brass according to EN 12420 standard.
Spring made of stainless steel; brass spindle; sealing ring type WMQ501.
External-internal threaded connection type G, according to ISO 228 standard.
Maximum working temperature: 110 ºC (without steam)
Minimum working temperature: 0 ºC (water 0.5 ºC)
Discharge pressure: 8 bar (red cap)
Name |
PN [bar] |
Connection |
Size |
Article Number |
Packaging |
Safety valve with valve direction and fixed setting |
10 |
FE-FI 1/2 |
DN 15 |
UH13003 |
105 |
Safety valve with valve direction and fixed setting |
10 |
FE-FI 3/4 |
DN 20 |
UH13004 |
90 |
