Straight balancing valves with variable flow section for solar systems STROMAX-4216 MS
4216
4216

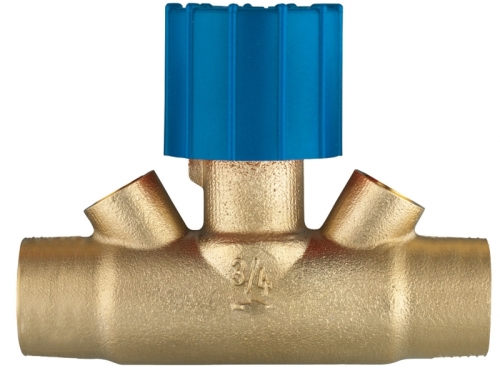

Balancing valve with variable passage section for solar systems STROMAX-4216 MS
Model with straight seat, made of dezincification-resistant brass in yellow (non-nickel-plated) execution.
Connection is made by soldering; DN 15 with 15 mm copper pipe, DN 20 with 22 mm copper pipe;
Presetting is made by limiting the valve stroke.
Maximum operating temperature: 200ºC
Maximum operating pressure: 10 bar
Model with straight seat, made of dezincification-resistant brass in yellow (non-nickel-plated) execution.
Connection is made by soldering; DN 15 with 15 mm copper pipe, DN 20 with 22 mm copper pipe;
Presetting is made by limiting the valve stroke.
Maximum operating temperature: 200ºC
Maximum operating pressure: 10 bar
| Denominates | Kvs [m3/h] | Conexiune | Dimensions | Article | Pachetaj |
|---|---|---|---|---|---|
| Robinet de equilibrare drept cu sectiune de trecere variabila pentru systeme solare STROMAX-4216 MS | 3.40 | Lipire 15 | DN 15 | 1 4216 11 | 10 |
| Robinet de equilibrare drept cu sectiune de trecere variabila pentru systeme solare STROMAX-4216 MS | 3.40 | Lipire 22 | DN 20 | 1 4216 12 | 10 |
