Control assemblies for HerzCON fan coils
4600
4600
CONTROL ASSEMBLIES FOR HERZCON FAN COIL VALVES (4600)

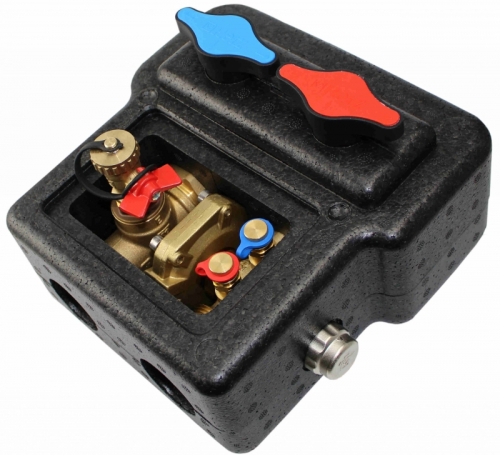

Pre-insulated control assembly for HerzCON fan coil valves, consisting of:
Pre-insulated control assembly for HerzCON fan coil valves, consisting of:
- 4006 M independent automatic flow regulator (with pressure taps);
- Circulation part with two three-way valves and extended plastic handles, compliant with BSRIABG29/2011;
- Dirt filter made of stainless steel with a stainless steel filter and filling/drain valve;
- Insulation housing, resistant to condensed steam;
- Distance between connection pipe shafts: 90 mm;
Can be used in conjunction with a drive with a connection M 28 x 1.5 and a stroke of 4 mm.
All components are made of brass, resistant to disinfection.
The assembly is suitable for heating and cooling systems.
Maximum operating temperature: 130°C
Minimum operating temperature: -20°C (water 2°C)
Maximum working pressure: 25 bar
Name |
Flow [l/h] |
Drive connection |
Pipe connection |
Size |
Article number |
Package |
Control assembly for HerzCON fan coil |
up to 1,900 |
M 28 x 1.5 |
FE-FI 1 1/4 G flat seal-1 Rp |
DN 25 |
1 4600 58 |
1 |
