Junction box
PO 101 - PO 119
PO 101 - PO 119
The distribution cabinet is an aesthetic and practical solution for installing components of underfloor heating, cooling, and sanitary systems. It allows easy access to the manifolds while also providing a practical space for additional components (valves, etc.). It is made of high-quality galvanized sheet steel and is powder-coated. The cabinet depth can be adjusted with adjustable brackets, and the front doors can be removed.

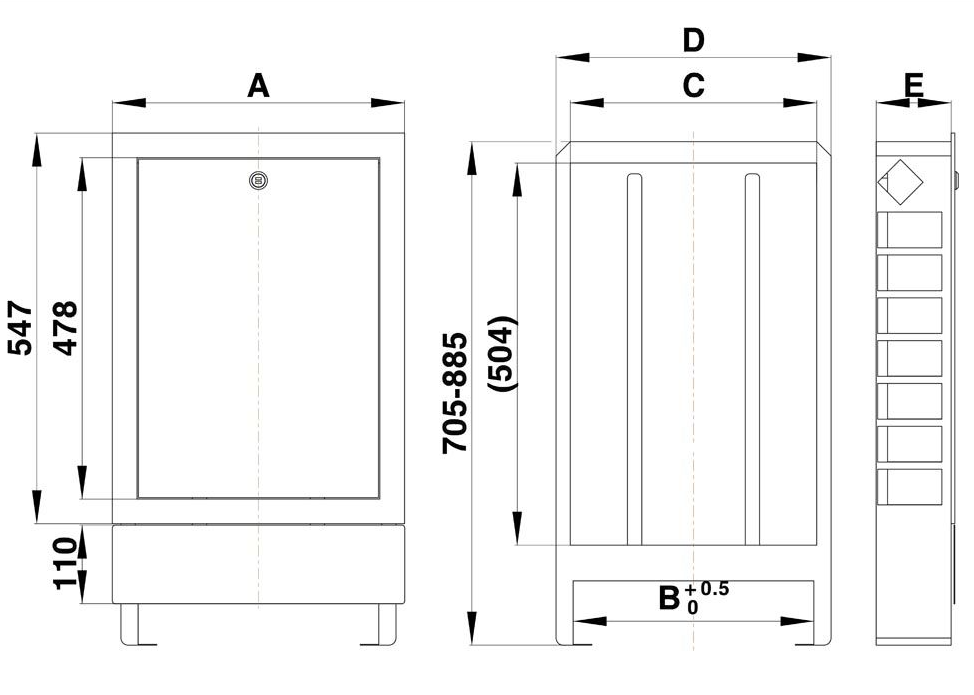

| art. | ident | EAN | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
| PO 101 | 1941201 | 3838963234685 | 409 | 337 | 345 | 385 | 80 - 110 |
| PO 102 | 1941202 | 3838963234692 | 459 | 387 | 395 | 435 | 80 - 110 |
| PO 103 | 1941203 | 3838963234708 | 513 | 441 | 449 | 489 | 80 - 110 |
| PO 104 | 1941204 | 3838963234739 | 598 | 526 | 534 | 574 | 80 - 110 |
| PO 105 | 1941205 | 3838963234746 | 748 | 676 | 684 | 724 | 80 - 110 |
| PO 106 | 1941206 | 3838963234760 | 898 | 826 | 834 | 874 | 80 - 110 |
| PO 107 | 1941207 | 3838963234791 | 1048 | 976 | 984 | 1024 | 80 - 110 |
| PO 108 | 1941208 | 3838963234807 | 1198 | 1126 | 1134 | 1174 | 80 - 110 |
| PO 109 | 1941209 | 3838963234951 | 1498 | 1426 | 1434 | 1474 | 80 - 110 |
| art. | ident | EAN | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
| PO 111 | 1941211PK | 3838963234845 | 409 | 337 | 345 | 385 | 110 - 150 |
| PO 112 | 1941212PK | 3838963234852 | 459 | 387 | 395 | 435 | 110 - 150 |
| PO 113 | 1941213PK | 3838963234869 | 513 | 441 | 449 | 489 | 110 - 150 |
| PO 114 | 1941214PK | 3838963234876 | 598 | 526 | 534 | 574 | 110 - 150 |
| PO 115 | 1941215PK | 3838963234883 | 748 | 676 | 684 | 724 | 110 - 150 |
| PO 116 | 1941216PK | 3838963234890 | 898 | 826 | 834 | 874 | 110 - 150 |
| PO 117 | 1941217PK | 3838963234906 | 1048 | 976 | 984 | 1024 | 110 - 150 |
| PO 118 | 1941218PK | 3838963234937 | 1198 | 1126 | 1134 | 1174 | 110 - 150 |
| PO 119 | 1941219PK | 3838963234944 | 1498 | 1426 | 1434 | 1474 | 110 - 150 |
| art. | ident | EAN | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
| PO 120 | 1941220 | 3838963249368 | 598 | 526 | 534 | 574 | 150 - 190 |
| PO 121 | 1941221 | 3838963427636 | 748 | 676 | 684 | 724 | 150 - 190 |
| PO 122 | 1941222 | 3838963427643 | 898 | 826 | 834 | 874 | 150 - 190 |
| PO 123 | 1941223 | 3838963427650 | 1048 | 976 | 984 | 1024 | 150 - 190 |
| PO 124 | 1941224 | 3838963427667 | 1198 | 1126 | 1134 | 1174 | 150 - 190 |
| PO 125 | 1941225 | 3838963427674 | 1498 | 1426 | 1434 | 1474 | 150 - 190 |

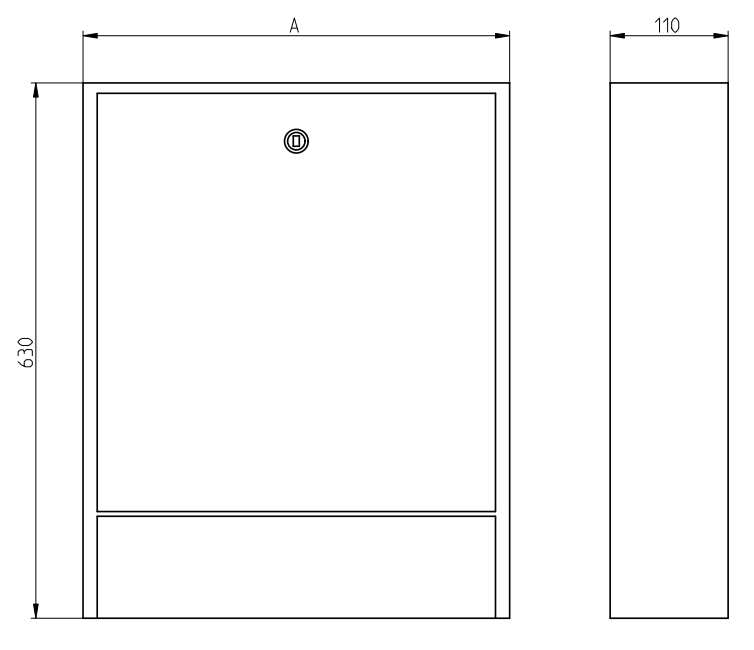

| art. | ident | EAN | A [mm] |
| PO 401S | 1941241 | 3838963248149 | 447 |
| PO 402S | 1941242 | 3838963248156 | 547 |
| PO 403S | 1941243 | 3838963248163 | 647 |
| PO 404S | 1941244 | 3838963248170 | 747 |
| PO 405S | 1941245 | 3838963248187 | 897 |
| PO 406S | 1941246 | 3838963248194 | 1047 |
| PO 407S | 1941247 | 3838963248200 | 1247 |

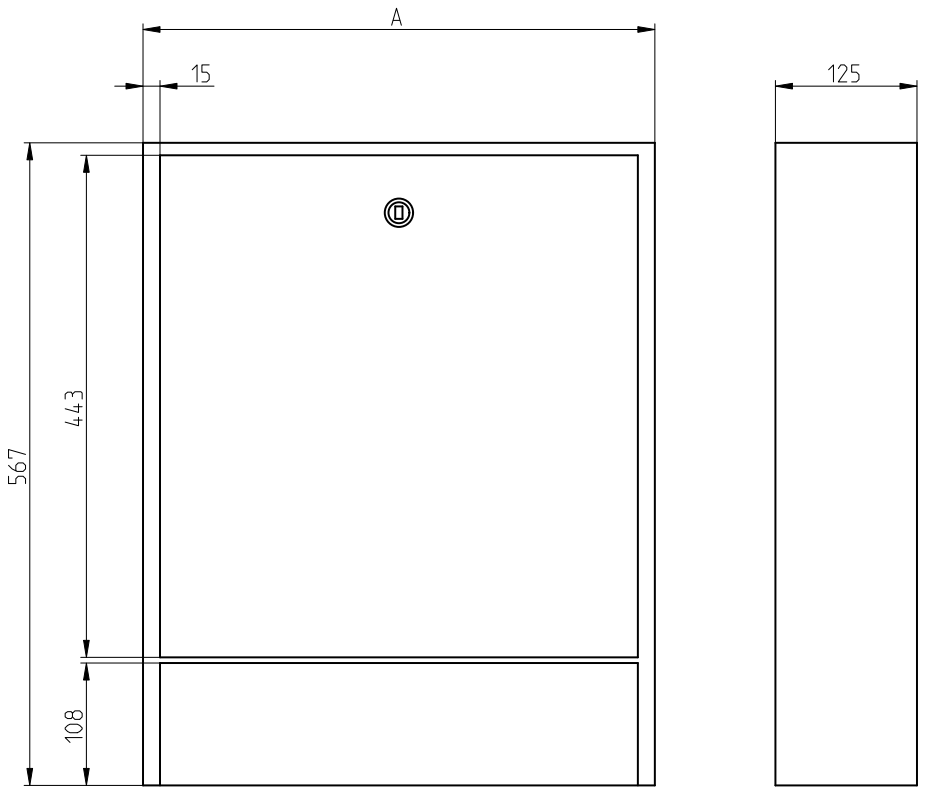

| art. | ident | EAN | A [mm] |
| NO 301 | 1941231 | 3838963244820 | 452 |
| NO 302 | 1941232 | 3838963244837 | 552 |
| NO 303 | 1941233 | 3838963244844 | 652 |
| NO 304 | 1941234 | 3838963244851 | 752 |
| NO 305 | 1941235 | 3838963244868 | 902 |
| NO 306 | 1941236 | 3838963244875 | 1052 |
| NO 307 | 1941237 | 3838963244882 | 1252 |
| Article number | Description | Suitable for |
| 1941203PS | cover plate type 500 | 1941203PK / 1941213PK |
| 1941204PS | cover plate type 600 | 1941204PK / 1941214PK / 1941220 |
| 1941205PS | cover plate type 750 | 1941205PK / 1941215PK / 1941221 |
| 1941206PS | cover plate type 900 | 1941206PK / 1941216PK / 1941222 |
| 1941207PS | cover plate type 10500 | 1941207PK / 1941217PK / 1941223 |
| 1941201OV | frame and door type 400 | 1941202PK / 1941212PK |
| 1941203OV | frame and door type 500 | 1941203PK / 1941213PK |
| 1941204OV | frame and door type 600 | 1941204PK / 1941214PK / 1941220 |
| 1941205OV | frame and door type 750 | 1941205PK / 1941215PK / 1941221 |
| 1941206OV | frame and door type 900 | 1941206PK / 1941216PK / 1941222 |
| 1941207OV | frame and door type 1050 | 1941207PK / 1941217PK / 1941223 |
| 1941208OV | frame and door type 1200 | 1941208PK / 1941218PK / 1941224 |
| 1941201V | door type 300 | 1941201PK / 1941211PK |
| 1941202V | door type 400 | 1941202PK / 1941212PK |
| 1941203V | door type 500 | 1941203PK / 1941213PK |
| 1941204V | door type 600 | 1941204PK / 1941214PK / 1941220 |
| 1941205V | door type 750 | 1941205PK / 1941215PK / 1941221 |
| 1941206V | door type 900 | 1941206PK / 1941216PK / 1941222 |
| 1941207V | door type 1050 | 1941207PK / 1941217PK / 1941223 |
| 1951208V | door type 1200 | 1941208PK / 1941218PK / 1941224 |
| 1961209V | door type 1500 | 1941209PK / 1941219PK / 1941225 |
| 1941241OV | frame and door slim type 400 | 1941241 |
| 1941242OV | frame and door slim type 500 | 1941242 |
| 1941243OV | frame and door slim type 600 | 1941243 |
| 1941244OV | frame and door slim type 750 | 1941244 |
| 1941245OV | frame and door slim type 900 | 1941245 |
| 1941246OV | frame and door slim type 1050 | 1941246 |
| 1941247OV | frame and door slim type 1200 | 1941247 |
| 1941241PS | cover plate slim type 400 | 1941241 |
| 1941242PS | cover plate slim type 500 | 1941242 |
| 1941243PS | cover plate slim type 600 | 1941243 |
| 1941244PS | cover plate slim type 750 | 1941244 |
| 1941245PS | cover plate slim type 900 | 1941245 |
| 1941246PS | cover plate slim type 1050 | 1941246 |
| 1941247PS | cover plate slim type 1200 | 1941247 |
| 1941241O | frame slim type 400 | 1941241 |
| 1941242O | frame slim type 500 | 1941242 |
| 1941243O | frame slim type 600 | 1941243 |
| 1941244O | frame slim type 750 | 1941244 |
| 1941245O | frame slim type 900 | 1941245 |
| 1941246O | frame slim type 1050 | 1941246 |
| 1941247O | frame slim type 1200 | 1941247 |
| 1941241V | door slim type 400 | 1941241 |
| 1941242V | door slim type 500 | 1941242 |
| 1941243V | door slim type 600 | 1941243 |
| 1941244V | door slim type 750 | 1941244 |
| 1941245V | door slim type 900 | 1941245 |
| 1941246V | door slim type 1050 | 1941246 |
| 1941247V | door slim type 1200 | 1941247 |
