DOUBLE-ACTING BALL VALVES (2503)

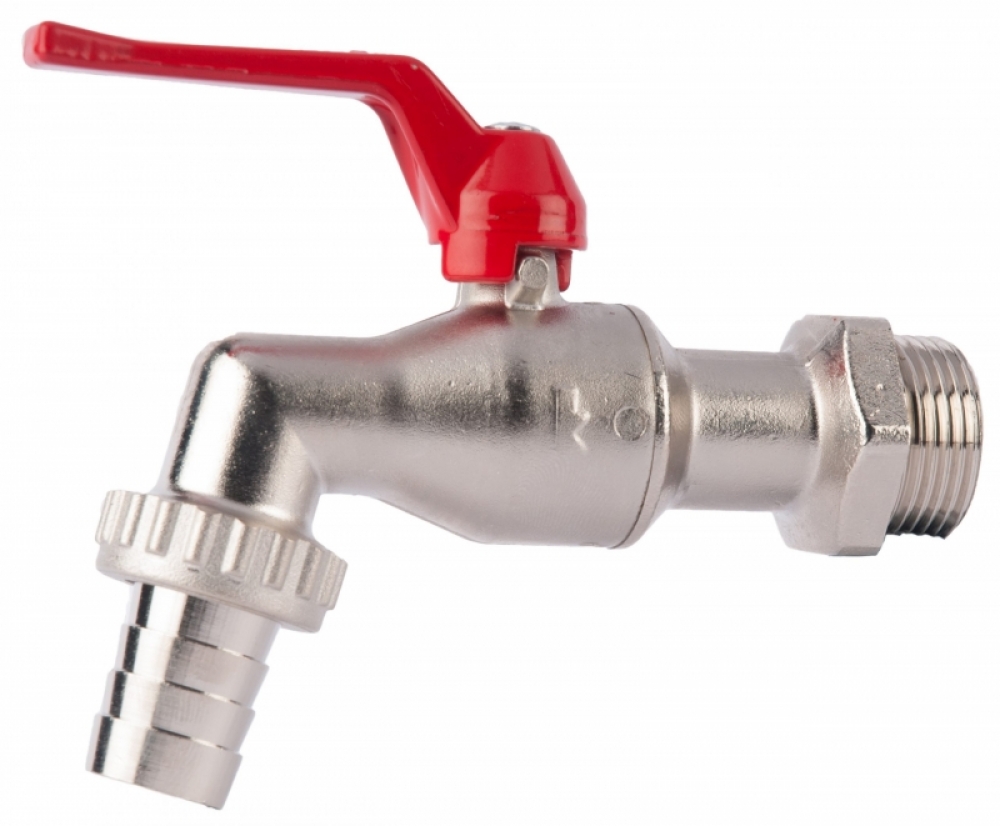

Double-acting lever ball valve
With brass portfolio connection in nickel finish.
Actuator with lever, made of silumin, painted red.
Forged brass body, nickel-plated, externally threaded in accordance with ISO 228.
Forged brass ball, chrome-plated and full bore.
Machined brass stem.
The ball is sealed with Teflon seals (PTFE) and the stem with rubber seals (NBR).
Maximum operating temperature: 110 ºC
Minimum operating temperature: -30 ºC (water 0,5 ºC)
Maximum working pressure: 16 bar
Double-acting lever ball valve
With brass portfolio connection in nickel finish.
Actuator with lever, made of silumin, painted red.
Forged brass body, nickel-plated, externally threaded in accordance with ISO 228.
Forged brass ball, chrome-plated and full bore.
Machined brass stem.
The ball is sealed with Teflon seals (PTFE) and the stem with rubber seals (NBR).
Maximum operating temperature: 110 ºC
Minimum operating temperature: -30 ºC (water 0,5 ºC)
Maximum working pressure: 16 bar
Name |
PN[bar] |
Link |
Size |
Article |
Package |
Double lever actuated ball valve |
16 |
FE 1/2 |
DN 10 |
1 2503 01 |
10 |
Double lever actuated ball valve |
16 |
FE 3/4 |
DN 15 |
1 2503 02 |
25 |
